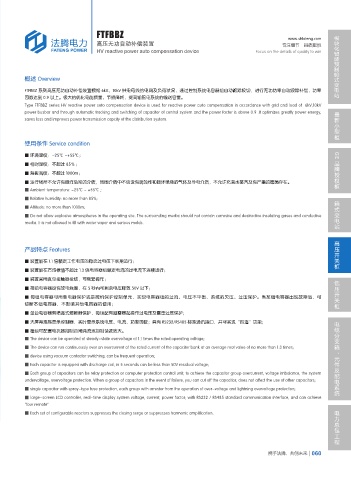

FTFBBZ 模块化智能预制舱式变电站
www.shfateng.com
高压无功自动补偿装置 专注细节 品质取胜
HV reactive power auto compensation device Focus on the details of quality to win

概述 Overview

FTFBBZ 系列高压无功自动补偿装置根据 6kV、10kV 供电母线的电网及负荷状况，通过控制系统电容器组自动跟踪投切，进行无功功率自动跟踪补偿，功率
因数达到 0.9 以上。极大的优化电能质量、节损降耗，提高输配电系统的输送容量。
Type FTFBBZ series HV reactive power suto compensation device is used for reactive power auto compensation in accordance with grid and load of 6kV,10kV
最新小型柜
power busbar and through automatic tracking and switching of capacitor of control system and the power factor is above 0.9 .It optimizes greatly power energy,
saves loss and improves power transmission capcity of the distribution system.

使用条件 Service condition

■ 环境温度：-25℃ ~+55℃； GE
品牌授权柜
■ 相对湿度：不超过 85％；
■ 海拔高度：不超过 1000m；
■ 运行场所不允许有爆炸危险的介质，周围介质中不应含有腐蚀性和破坏绝缘的气体及导电介质，不允许充满水蒸汽及有严重的霉菌存在。
■ Ambient temperature: -25℃ ~ +55℃ ;
■ Relative humidity: no more than 85%; 箱式变电站
■ Altitude: no more than 1000m;
■ Do not allow explosive atmospheres in the operating site. The surrounding media should not contain corrosive and destructive insulating gases and conductive
media. It is not allowed to fill with water vapor and serious molds.

高压开关柜
产品特点 Features

■ 装置能在 1.1 倍额定工作电压的稳态过电压下长期运行；
■ 装置能在方均根值不超过 1.3 倍电容器组额定电流的过电流下连续运行；
■ 装置采用真空接触器投切，可频繁操作； 低压开关柜
■ 每组电容器设有放电线圈，在 5 秒内可剩余电压降致 50V 以下；
■ 每组电容器可用继电器保护或是微机保护控制单元，实现电容器组的过流、电压不平衡、系统的欠压、过压保护。当某组电容器出现故障后，可
切断本组电容器，不影响其他电容器的使用；
■ 单台电容器有喷逐式熔断器保护，每组配有避雷器起操作过电压及雷击过压保护；
电缆分支箱、元件及配电系统
■ 大屏幕液晶显示控制器，实时显示系统电压、电流、功率因数；具有 RS232/RS485 标准通讯接口，并可实现“四遥”功能；
■ 每组可配置电抗器抑制合闸涌流或抑制谐波放大。
■ The device can be operated at steady-state overvoltage at 1.1 times the rated operating voltage;
■ The device can run continuously over an overcurrent of the rated current of the capacitor bank at an average root value of no more than 1.3 times;
■ device using vacuum contactor switching, can be frequent operation;
■ Each capacitor is equipped with discharge coil, in 5 seconds can be less than 50V residual voltage;
■ Each group of capacitors can be relay protection or computer protection control unit, to achieve the capacitor group overcurrent, voltage imbalance, the system
undervoltage, overvoltage protection. When a group of capacitors in the event of failure, you can cut off the capacitor, does not affect the use of other capacitors;
■ single capacitor with spray-type fuse protection, each group with arrester from the operation of over-voltage and lightning overvoltage protection;
■ large-screen LCD controller, real-time display system voltage, current, power factor; with RS232 / RS485 standard communication interface, and can achieve
"four remote"
电力总包工程
■ Each set of configurable reactors suppresses the closing surge or suppresses harmonic amplification.
