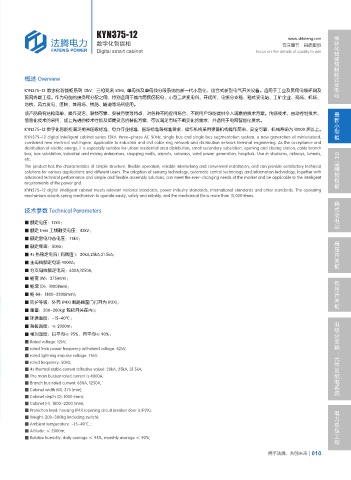

KYN375-12 模块化智能预制舱式变电站
www.shfateng.com
数字化智能柜 专注细节 品质取胜
Digital smart cabinet Focus on the details of quality to win

概述 Overview

KYN375-12 数字化智能柜系列 12kV，三相交流 50Hz, 单母线及单母线分段系统的新一代小型化、组合式新型电气开关设备。适用于工业及民用电缆环网及
配网终端工程。作为电能的接受和分配之用，特别适用于城市居民区配电、小型二次变电所、开闭所、电缆分支箱、箱式变电站、工矿企业、商场、机场、
地铁、风力发电、医院、体育场、铁路、隧道等场所使用。
最新小型柜
该产品具有结构简单、操作灵活、联锁可靠、安装方便等特点，对各种不同应用场合、不同用户均能提供令人满意的技术方案。传感技术、自动控制技术、
信息化技术的采用，加上先进的技术性能及简便灵活的装配方案，可以满足市场不断变化的需求，并适用于电网智能化要求。
KYN375-12 数字化智能柜满足相关国家标准，电力行业标准，国际标准等标准要求，操作机构采用弹簧机构操作简单、安全可靠，机械寿命为 10000 次以上。
KYN375-12 digital intelligent cabinet series 12kV, three-phase AC 50Hz, single bus and single bus segmentation system, a new generation of miniaturized,
combined new electrical switchgear. Applicable to industrial and civil cable ring network and distribution network terminal engineering. As the acceptance and
distribution of electric energy, it is especially suitable for urban residential area distribution, small secondary substation, opening and closing station, cable branch
box, box substation, industrial and mining enterprises, shopping malls, airports, subways, wind power generation, hospitals. Use in stadiums, railways, tunnels, GE
etc. 品牌授权柜
The product has the characteristics of simple structure, flexible operation, reliable interlocking and convenient installation, and can provide satisfactory technical
solutions for various applications and different users. The adoption of sensing technology, automatic control technology and information technology, together with
advanced technical performance and simple and flexible assembly solutions, can meet the ever-changing needs of the market and be applicable to the intelligent
requirements of the power grid.
KYN375-12 digital intelligent cabinet meets relevant national standards, power industry standards, international standards and other standards. The operating
mechanism adopts spring mechanism to operate easily, safely and reliably, and the mechanical life is more than 10,000 times.
箱式变电站
技术参数 Technical Parameters
■ 额定电压：12kV；
■ 额定 1min 工频耐受电压：42kV；
■ 额定雷电冲击电压：75kV； 高压开关柜
■ 额定频率：50Hz；
■ 4s 热稳定电流 ( 有效值 )：20kA,25kA,31.5kA；
■ 主母线额定电流 4000A；
■ 分支母线额定电流：630A,1250A,
■ 柜宽 (W)：375(mm)； 低压开关柜
■ 柜深 (D)：1000(mm)；
■ 柜 (H)：1800-2200(mm)；
■ 防护等级：外壳 IP4X( 断路器室门打开为 IP2X)；
■ 重量：200~300kg( 包括开关在内 )；
■ 环境温度：-15~40℃； 电缆分支箱、元件及配电系统
■ 海拔高度：≤ 2000m；
■ 相对湿度：日平均≤ 95%，月平均≤ 90%；
■ Rated voltage: 12kV;
■ rated 1min power frequency withstand voltage: 42kV;
■ rated lightning impulse voltage: 75kV;
■ rated frequency: 50Hz;
■ 4s thermal stable current (effective value): 20kA, 25kA, 31.5kA;
■ The main busbar rated current is 4000A;
■ Branch bus rated current: 630A, 1250A,
■ Cabinet width (W): 375 (mm);
■ Cabinet depth (D): 1000 (mm);
■ Cabinet (H): 1800-2200 (mm);
■ Protection level: housing IP4X (opening circuit breaker door is IP2X); 电力总包工程
■ Weight: 200~300kg (including switch);
■ Ambient temperature: -15~40℃ ;
■ Altitude: ≤ 2000m;
■ Relative humidity: daily average ≤ 95%, monthly average ≤ 90%;
