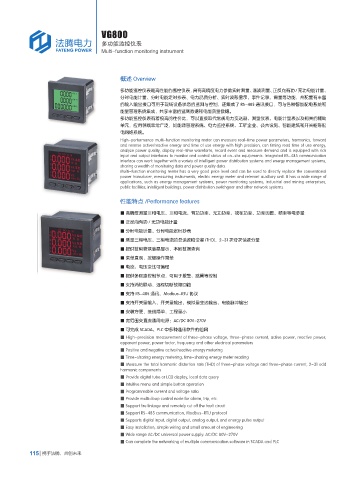

VG800

多功能监控仪表
Multi-function monitoring instrument

概述 Overview

多功能监控仪表是高性能的监控仪表，具有高精度电力参数实时测量、谐波测量、正反向有功 / 无功电能计量、
分时电能计量、分时电能定时抄表、电力品质分析、实时波形显示、事件记录、需量等功能，并配置有丰富
的输入输出接口可用于现场设备状态的监测与控制，还集成了 RS-485 通讯接口，可与各种智能配电系统和
能量管理系统集成，共享丰富的监测数据和电能质量数据。
多功能监控仪表有着极高的性价比，可以直接取代常规电力变送器、测量仪表、电能计量表以及相关的辅助
单元，应用领域非常广泛，如能源管理系统、电力监控系统、工矿企业、公共设施、智能建筑和开关柜等配
电网络系统。
High-performance multi-function monitoring meter can measure real-time power parameters, harmonics, forward
and reverse active/reactive energy and time of use energy with high precision, can timing read time of use energy,
analyze power quality, display real-time waveform, record event and measure demand and is equipped with rich
input and output interfaces to monitor and control status of on-site equipments. Integrated RS-485 communication
interface can work together with a variety of intelligent power distribution systems and energy management systems,
sharing a wealth of monitoring data and power quality data.
Multi-function monitoring meter has a very good price level and can be used to directly replace the conventional
power transducer, measuring instruments, electric energy meter and relevant auxiliary unit. It has a wide range of
applications, such as energy management systems, power monitoring systems, industrial and mining enterprises,
public facilities, intelligent buildings, power distribution switchgear and other network systems.

性能特点 /Performance features
■ 高精度测量三相电压、三相电流、有功功率、无功功率、视在功率、功率因数、频率等电参量
■ 正反向有功 / 无功电能计量
■ 分时电能计量、分时电能定时抄表
■ 测量三相电压、三相电流的总谐波畸变率 (THD)，2-31 次奇次谐波分量
■ 提供数码管或液晶显示，本地数据查询
■ 菜单直观，按键操作简单
■ 电流、电压变比可编程
■ 提供多回路控制节点，可用于报警、跳闸等控制
■ 支持消防联动，远程切断故障回路
■ 支持 RS-485 通讯，Modbus-RTU 协议
■ 支持开关量输入、开关量输出、模拟量变送输出、电能脉冲输出
■ 安装方便，接线简单，工程量小
■ 宽范围交直流通用电源：AC/DC 80V~270V
■ 可完成 SCADA、PLC 中多种通讯软件的组网
■ High-precision measurement of three-phase voltage, three-phase current, active power, reactive power,
apparent power, power factor, frequency and other electrical parameters
■ Positive and negative active/reactive energy metering
■ Time-sharing energy metering, time-sharing energy meter reading
■ Measure the total harmonic distortion rate (THD) of three-phase voltage and three-phase current, 2-31 odd
harmonic components
■ Provide digital tube or LCD display, local data query
■ Intuitive menu and simple button operation
■ Programmable current and voltage ratio
■ Provide multi-loop control node for alarm, trip, etc.
■ Support fire linkage and remotely cut off the fault circuit
■ Support RS-485 communication, Modbus-RTU protocol
■ Supports digital input, digital output, analog output, and energy pulse output
■ Easy installation, simple wiring and small amount of engineering
■ Wide range AC/DC universal power supply: AC/DC 80V~270V
■ Can complete the networking of multiple communication software in SCADA and PLC
