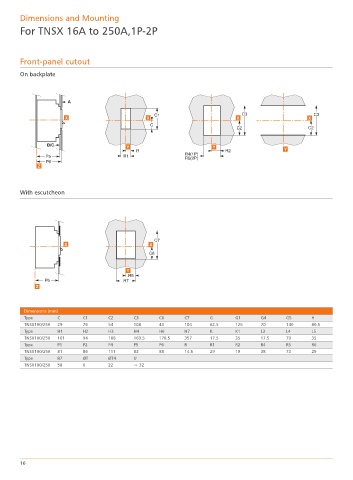

Dimensions and Mounting
For TNSX 16A to 250A,1P-2P
Front-panel cutout
On backplate
X X X X
X Y X Y X Y X
Z
Y Y
Y
With escutcheon
Z
X X
Y
X X
Z
Y
Z
Dimensions (mm)
Type C C1 C2 C3 C6 C7 G G1 G4 G5 H
TNSX100/250 29 76 54 108 43 104 62.5 125 70 140 80.5
Type H1 H2 H3 H4 H6 H7 K K1 L3 L4 L5
TNSX100/250 161 94 188 160.5 178.5 357 17.5 35 17.5 70 35
Type P1 P2 P4 P5 P6 R R1 R2 R4 R5 R6
TNSX100/250 81 86 111 83 88 14.5 29 19 38 73 29
Type R7 ØT ØT4 U
TNSX100/250 58 6 22 ≤ 32
