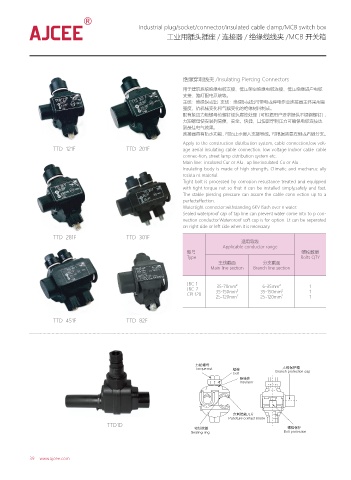

Industrial plug/socket/connector/insulated cable clamp/MCB switch box
                                                          工业用插头插座 / 连接器 / 绝缘缆线夹 /MCB 开关箱







                                                                绝缘穿刺线夹 /Insulating Piercing Connectors
                                                                用于建筑系统绝缘电缆支接、低压架空绝缘电缆连接、低压绝缘进户电缆
                                                                支接、路灯配电系统等。
                                                                主线：绝缘铜或铝  支线：绝缘铜或铝可带电或停电作业连接器主体采用高
                                                                强度，抗机械变化和气候变化的绝缘材料制成。
                                                                配有紧固力矩螺母的螺钉经抗腐蚀处理（可根据用户要求提供不锈钢螺钉）,
                                                                力矩螺母使安装列简便、安全、快捷，其恒定穿刺压力可确保电缆连接达
                                                                到最佳电气效果。
                                                                连接器具有防水功能，可防止水侵入支接导线。可根据需要左侧或右侧分支。
                                                                Apply to the construction distribution system, cable connection,low volt-
                   TTD  121F                TTD  201F           age aerial insulating cable connection. low voltage indoor cable cable
                                                                connec-tion, street lamp cistribution system etc.
                                                                Main line:  insula:ed Cur or Alu . ap line:insulated Cu or Alu .
                                                                Insulating body is made of high strength, Climatic and mecharuc ally
                                                                resista nt material.
                                                                Tight bolt is processed by corrosion resustance treated and equipped
                                                                with tight torque nut so that it can be installed simply,safely and fast.
                                                                The stable piercing pressure can assure the cable conn ection up to a
                                                                perfecteffection.
                                                                Watertight connector:withstanding 6KV flash over n water.
                                                                Sealed waterproof cap of tap line can prevent water come into to p con-
                                                                nection conductor.Wateroroof soft cap is for option. Lt can be seperated
                                                                on right side or left side when it is necessary.
                   TTD  281F                TTD  301F
                                                                                    适用导线
                                                                              Applicable conductor range
                                                                 型号                                      螺栓数量
                                                                 Type                                   Bolts QTY
                                                                            主线截面           分支截面
                                                                         Main line section  Branch line section

                                                                 JBC-1      35-70mm 2      6-35mm 2        1
                                                                 JBC-2     35-150mm 2      35-150mm 2      1
                                                                 CPL120           2               2
                                                                           25-120mm        25-120mm        1


                   TTD  451F                TTD  82F








                                                                    ߇ⴕ㳦⃹
                                                                    5PSRVF OVU   㳦ᴿ               ᩛ㏫ԉ័፩
                                                                                 CPMU           #SBODI QSPUFDUJPO DBQ
                                                                                   㐉㑄ѿ
                                                                                   *OTVMBUPS




                                                                                 ⾫ݦᣑ㼒ܬ❳
                                                                                1VODUVSF DPOUBDU CMBEF
                                      TTD1D
                                                                    ჲᄭ㘢ఴ                            㳦ᴿԉ័
                                                                   4FBMJOH SJOH                    #PMU QSPUFDUJPO
