P. 33

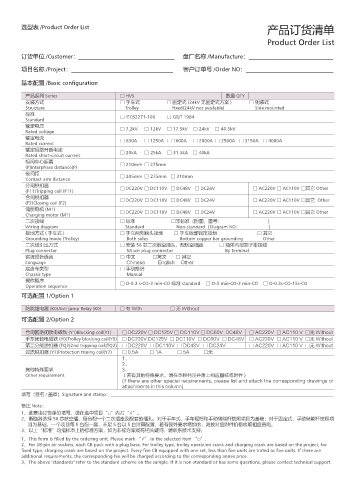

选型表 /Product Order List 产品订货清单

Product Order List

订货单位 /Customer：_________________________________ 盘厂名称 /Manufacture：_____________________________

项目名称 /Project：___________________________________ 客户订单号 /Order NO：______________________________

基本配置 /Basic conﬁguration

产品系列 Series □ HVS 数量 QTY
安装方式 □ 手车式 □ 固定式 (24kV 无固定式方案 ) □ 侧装式
Structure Trolley Fixed(24kV not available) Side mounted
标准 □ IEC62271-100 □ GB/T 1984
Standard
额定电压 □ 7.2kV □ 12kV □ 17.5kV □ 24kV □ 40.5kV
Rated voltage
额定电流
Rated current □ 630A □ 1250A □ 1600A □ 2000A □ 2500A □ 3150A □ 4000A
额定短路开断电流 □ 20kA □ 25kA □ 31.5kA □ 40kA
Rated short-circuit current
相间中心距离
(P)Interphase distance(P) □ 210mm □ 275mm
极间距 □ 205mm □ 275mm □ 310mm
Contact arm distance
分闸脱扣器
(F11)Tripping coil (F11) □ DC220V □ DC110V □ DC48V □ DC24V □ AC220V □ AC110V □其它 Other
合闸脱扣器 □ DC220V □ DC110V □ DC48V □ DC24V □ AC220V □ AC110V □其它 Other
(F2)Closing coil (F2)
储能电机 (M1) □ DC220V □ DC110V □ DC48V □ DC24V □ AC220V □ AC110V □其它 Other
Charging motor (M1)
二次接线 □ 标准 □非标准（附图，图号：）
Wiring diagram Standard Non-standard（Diagram NO：）
接地方式 ( 手车式 ) □ 手车两侧触头接地 □ 手车底部铜排接地 □ 其它
Grounding mode (Trolley) Both sides Bottom copper bar grounding Other
二次线引出方式 □ 安装 58 芯二次航空插头，配航空插座 □ 箱体内部端子排接线
Plug connector 58 pin plug connector By Terminal
铭牌报告语言 □ 中文 □英文 □ 其它
Language Chinese English Other
底盘车类型 □ 手动推进
Chassis type Manual
操作顺序 □ O-0.3 s-CO-3 min-CO 标准 standard □ O-3 min-CO-3 min-CO □ O-0.3s-CO-15s-CO
Operation sequence
可选配置 1/Option 1

防跳继电器 (K0)Anti-jump Relay (K0) □ 有 With □ 无 Without
可选配置 2/Option 2

合闸回路闭锁电磁铁 (Y1)Blocking coil(Y1) □ DC220V □ DC125V □ DC110V □ DC60V DC48V □ AC220V □ AC110 V □无 Without
手车闭锁电磁铁 (Y0)Trolley blocking coil(Y0) □ DC220V DC125V □ DC110V □ DC60V □ DC48V □ AC220V □ AC110 V □无 Without
第二分闸脱扣器 (TQ2)2nd tripping coil(TQ2) □ DC220V □ DC110V □ DC48V □ DC24V □ AC220V □ AC110 V □无 Without
过流脱扣器 (Y7)Protection triping coil(Y7) □ 0.5A □ 1A ☐ □ 5A ☐ □无
1、
2、
其他特殊要求 3、
Other requirement （若有其他特殊要求，请在本栏列示并附上相应图纸或附件）
(If there are other special requirements, please list and attach the corresponding drawings or
attachments in this column)
填写（签名 / 盖章）Signature and stamp：________________________________________________________________________________________________
备注 Note：
1、此表由订货单位填写，请在选中项目“□”内打“√”。
2、断路器选择 58 芯航空插，每台配一个二次插座及配套的插孔。对于手车式，手车摇把和手动储能杆按照项目为基础；对于固定式，手动储能杆按照项
目为基础，一个项目每 5 台配一套，不足 5 台以 5 台计算配置，若有额外要求增加的，则按对应附件价格收取相应费用。
3、以上“标准”均指样本上的标准方案，如为非标方案或有相关疑问，请联系技术支持。
1、This form is ﬁlled by the ordering unit. Please mark “√” in the selected item “□”.
2、For 58-pin air sockets, each CB pack with a plug base. For trolley type, trolley operation crank and charging crank are based on the project; for
ﬁxed type, charging crank are based on the project. Every ﬁve CB equipped with one set, less than ﬁve units are trated as ﬁve units. If there are
additional requirements, the corresponding fee will be charged according to the corresponding annex price.
3、The above "standards" refer to the standard scheme on the sample. If it is non-standard or has some questions, please contact technical support.
